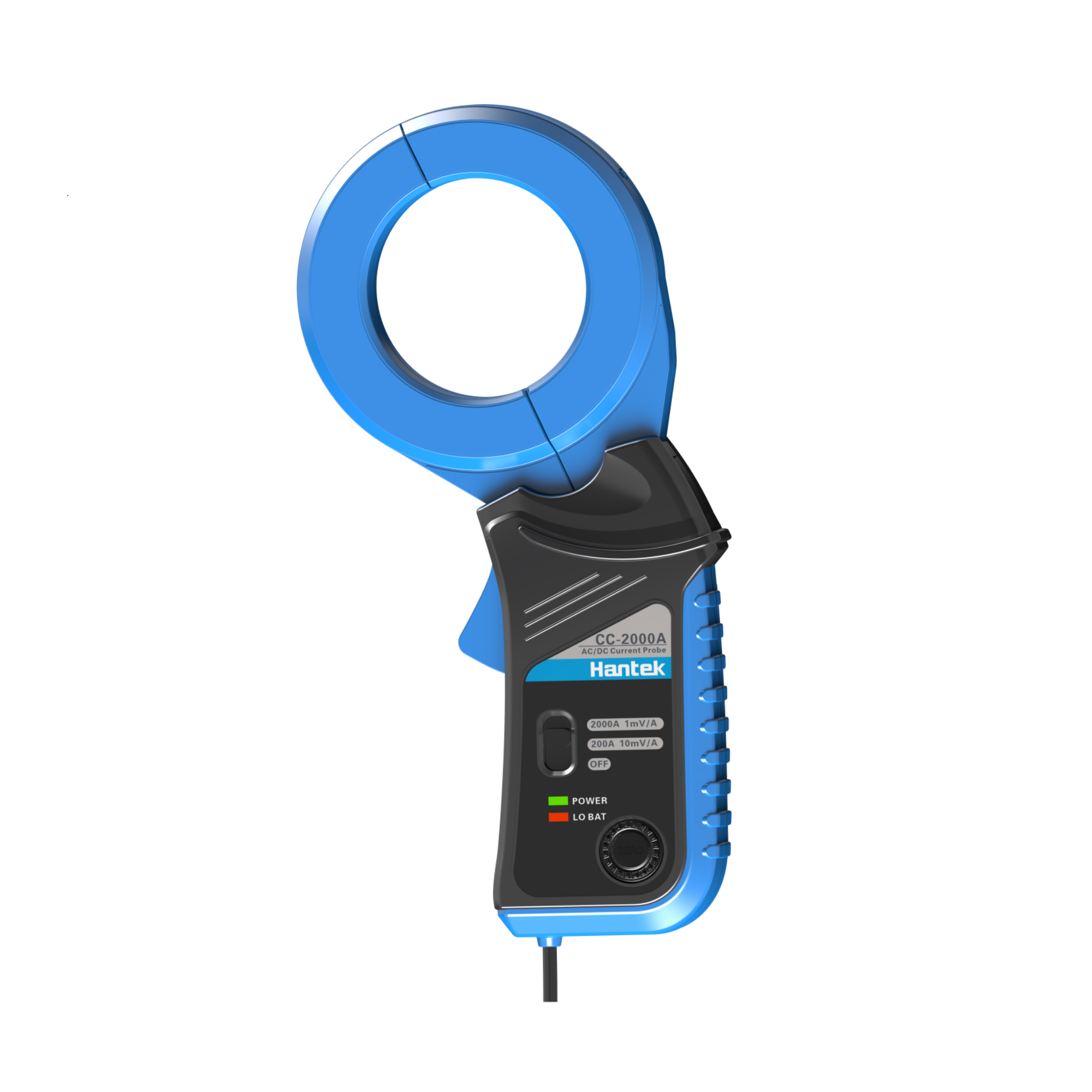

Hantek officially launches the CC-2000A AC/DC Current Clamp. It delivers a convenient high-current waveform and data measurement solution for high-power power supply commissioning, inverter motor drive, and power electronic equipment testing. Compatible directly with oscilloscopes and multimeters for AC/DC current measurement, it requires no wire disconnection or stripping, greatly improving efficiency in power electronics R&D and troubleshooting.

Product Features

In test scenarios such as power electronics and motor drive, traditional high-current measurement usually requires breaking the circuit and stripping cable insulation. Test preparation is cumbersome, and there are pain points including damage to original wiring and introduced measurement risks. The CC-2000A adopts an openable clamp design. It needs no disruption to the current loop or insulation stripping; AC and DC current measurement can be completed simply by clamping the wire. It supports a maximum measurable AC/DC current of 2000A, meeting the on-site commissioning requirements of high-power equipment.

Built with a permalloy magnetic core and Hall sensor elements, the CC-2000A linearly converts AC/DC current into a voltage signal. Dual-range output is available to suit diverse measurement needs:

10mV/A range: Measuring range 1A~200A (DC or AC RMS), peak current 300A pk.

1mV/A range: Measuring range 1A~2000A (DC or AC RMS), peak current 3000A pk.

Product bandwidth: DC ~10kHz (-3dB), supporting both DC steady-state and low-frequency dynamic current capture.

For device compatibility, this current clamp is equipped with a standard BNC connector. It can be directly connected to an oscilloscope to view real-time current waveforms. With a BNC-to-banana plug adapter, it can also connect to a multimeter for current value reading. One probe fulfills both waveform observation and numerical reading, matching engineers’ daily workflow of using oscilloscopes and multimeters simultaneously.

Product Applications

This new product focuses on three major testing fields: power circuit measurement and fault analysis, motor drive testing for inverters and similar devices, and performance verification of power electronic equipment. Whether for characteristic debugging in the R&D stage, production line inspection, or on-site troubleshooting, the CC-2000A can quickly capture transient high-current changes and locate abnormalities such as overloads and current fluctuations.

Continuing the brand’s consistent cost-effective design philosophy, the CC-2000A complements Hantek’s economical domestic high-current AC/DC probe product portfolio. It forms a complete testing link with Hantek oscilloscopes, multimeters, and digital source meters, lowering the procurement threshold of high-power testing equipment for engineers engaged in power electronics and motor R&D.

The CC-2000A AC/DC current clamp is now officially launched and available for order placement for R&D laboratories, industrial production lines, university scientific research institutions and other scenarios.
