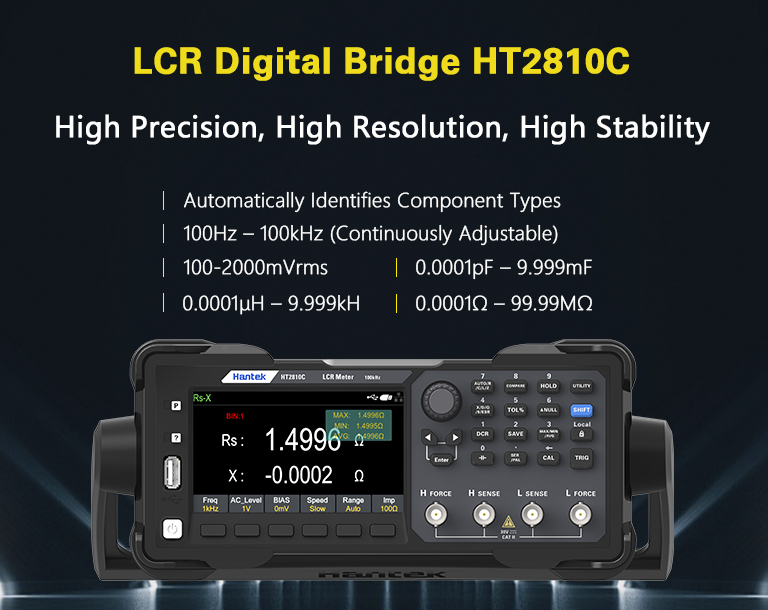

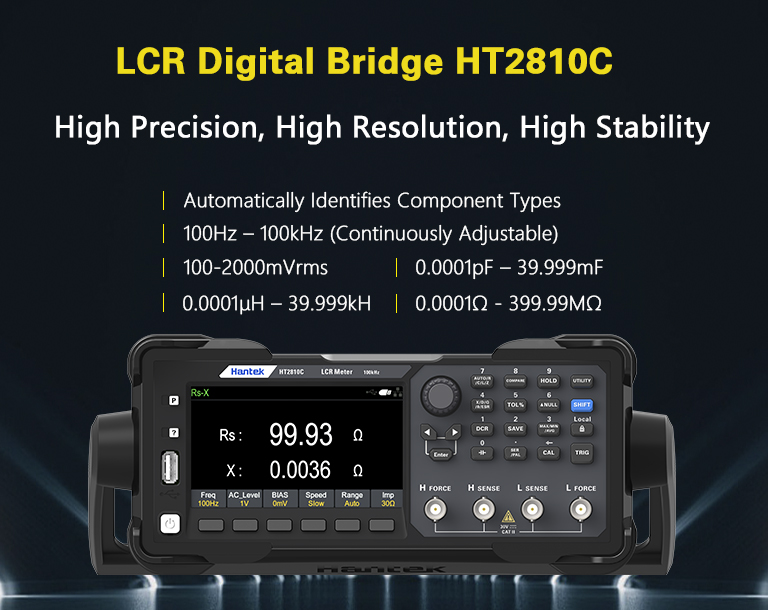

February 3, 2026: Hantek officially launches the all-new HT2810C desktop digital bridge! The HT2810C automatically identifies component types; features continuously adjustable test frequencies from 100Hz to 100kHz; continuously adjustable test levels from (100-2000)mVrms; Internal DC bias voltage (0-1500)mV continuously adjustable; Supports DC resistance and electrolytic capacitance measurement; Basic accuracy 0.1%; Supports open-circuit and short-circuit calibration; Data hold and data logging functions; Standard configuration: USB HOST, USB DEVICE, LAN, RS232/485, Handler; Supports SCPI communication protocol; Handler interface supports comparator sorting.

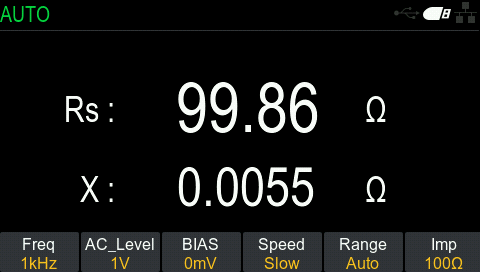

R/C/L Measurement

Primary parameters: R/C/L/Z; Secondary parameters: X/D/Q/θ/ESR.

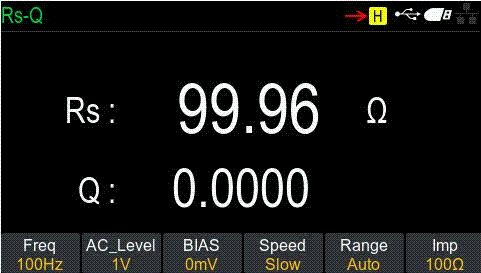

Data Hold and Record Function

When the data hold function is enable, the measured data remains unchanged. When the data logging function is enable, the maximum value, minimum value and average value are displayed.

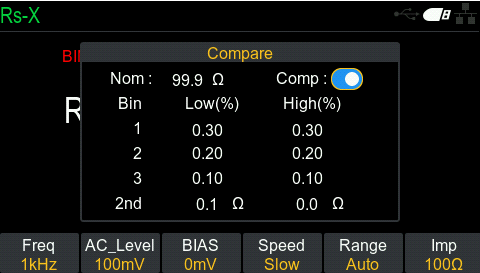

Comparator Function

The comparator provides five sorting grades (BIN:1, BIN:2, BIN:3, BIN:AUX, BIN:OUT).

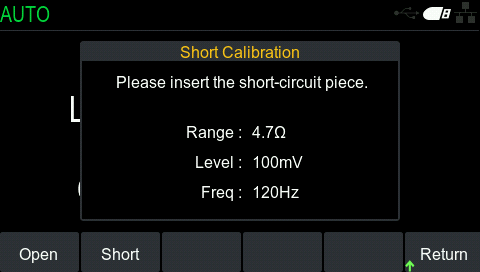

Open/Short Circuit Correction

Open and short circuit correction are used to eliminate measurement errors introduced by the parasitic parameters of the instrument and test fixtures. If precise measurement is required, it is recommended to perform open-circuit and short-circuit correctiom before the measurement.

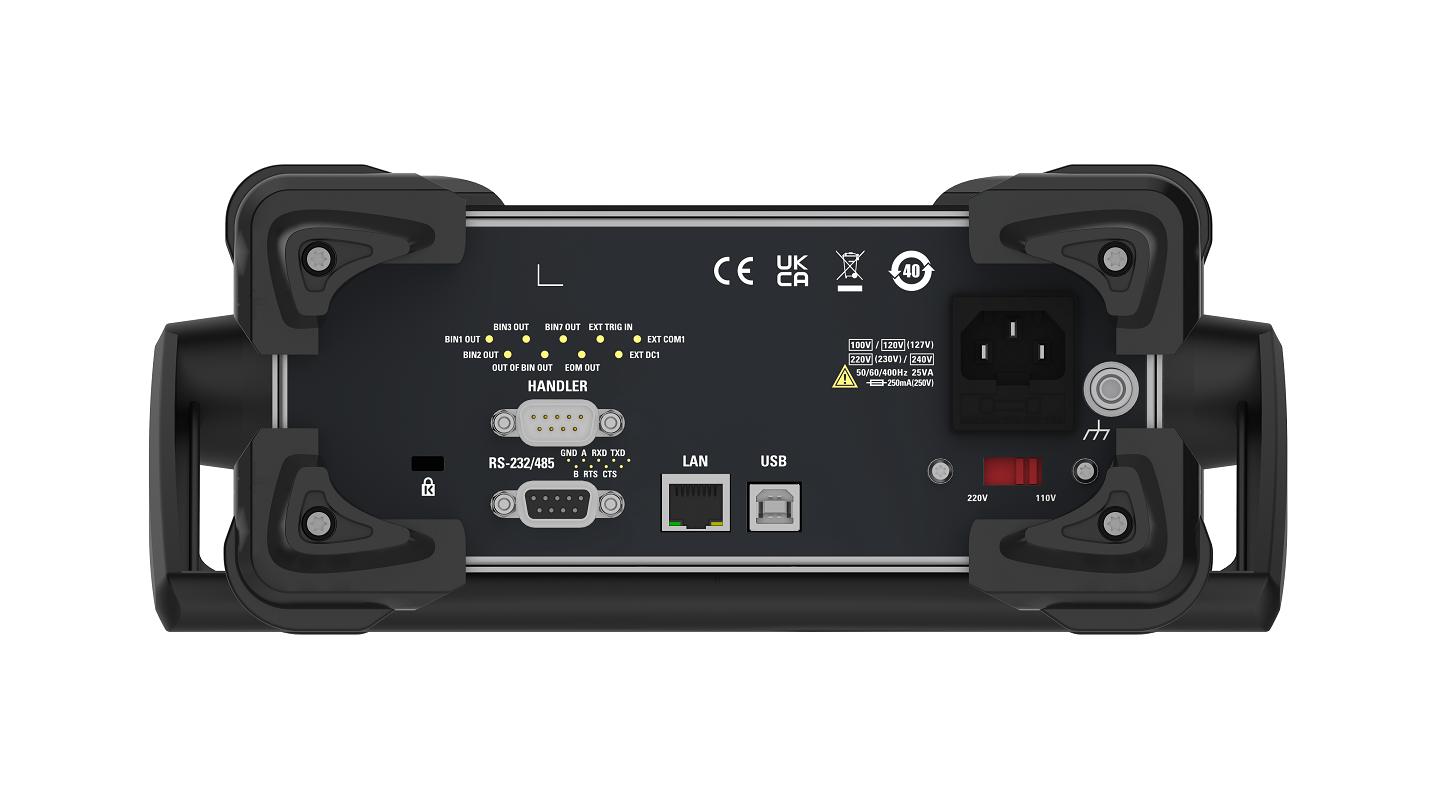

Multiple interface functions

RS232/485, LAN and USB DEVICE interfaces to achieve remote data communication, which can meet the requirements of current market automation applications. Handler interface, which is mainly used for outputting the sorting grades results.
